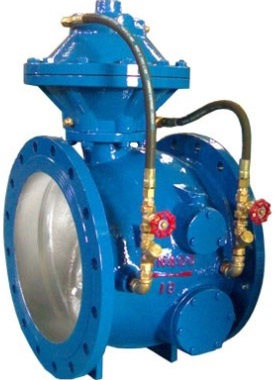

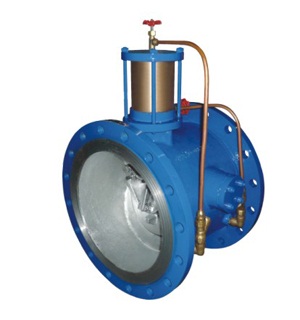

Pipe valve is the fifth generation of new product after the old manual control valve, hydraulic butterfly valve, multi-functional hydraulic valve and hydraulic automatic valve. Through the fluid design of the valve, a straight-line flow channel is formed with low energy consumption, stable operation and good sealing effect. It has the functions of electric gate valve, electric butterfly valve and check valve. By increasing the fast closing time, the harm of water hammer can be eliminated and the safety of the pump and pipe network system can be protected. Pipe force valve is mainly used in centrifugal pump, mixed flow pump and axial flow pump outlet pipe of automatic water supply and drainage pumping station. Piston type and diaphragm type control devices are designed, which can be applied to clean water, raw water medium, sewage and slurry water medium respectively. In terms of product type, the company has developed five specifications, such as ordinary type, low-pressure type of backwater, sewage type, to meet the needs of different customers under different working conditions. Because of its compact structure, small volume and light weight, it is especially suitable for large diameter pipeline system. It can be widely used in power supply, environmental protection, metallurgy, petrochemical, water department, municipal, food and other industries, drainage system, sewage pump room, chemical fluid transmission system, is the latest domestic and foreign structure, the most advanced performance, the most reliable operation of the new pump station control equipment.

Characteristic

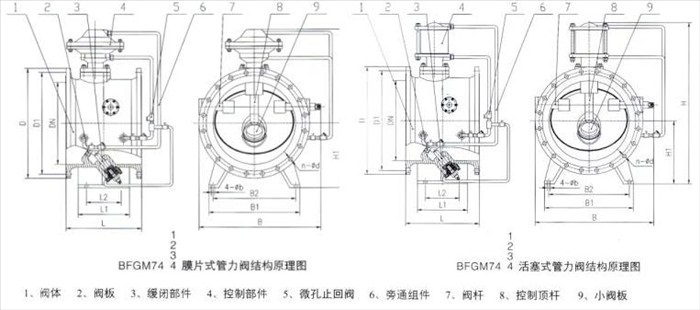

(1) The valve is composed of upper and lower carbon steel body, rubber pipe sleeve, valve stem gate plate, upper and lower guide posts and other parts.

(2) Working Principle: When the handwheel is rotated forward, the large and small stem simultaneously drives the upper and lower stubble plates, compresses the sleeve and closes, otherwise opens. In this way, the valve is opened and closed from top to bottom reciprocally between the guide posts.

Application condition

In some cases with more sediment and debris (such as Yellow River water quality, sewage treatment system, etc.), the valve control pipeline is easy to be blocked, resulting in valve failure; large debris is also easy to lock the valve plate, resulting in valve seal is not strict; there are also some special conditions, valve switch when the water hammer is very large, resulting in valve switch when loud. Big and even cause accidents.

Main technical parameters

公稱通徑DN(mm)	適用溫度℃	適用介質	流阻系數	工作壓力(Mpa)
DN150-DN2000	0-80	泥污、污水油品、海水	0.3-1.1	≥0.1
關閥時間(可調)	開閥時間(可調)	結構長度標準	法蘭標準	泄漏量
快關1-3秒慢關5-90秒	20-60秒	GB2221-89	GB/T79-94	GB/T13927-92

主要零件材料

零件名稱	閥體	閥心	閥軸	密封面	填料
材料名稱	球墨鑄鐵	球墨鑄鐵	不銹鋼	丁腈橡膠	O型密封圈
	碳鋼	碳鋼	不銹鐵
	不銹鋼	不銹鋼

Main dimensions

公稱通徑	長度	外形尺寸（參考值）								連接尺寸（標準值）
公稱通徑	長度	外形尺寸（參考值）								1.6 Mpa			2.5 Mpa
毫米	L	L1	L2	H	H1	B	B1	B2	n-b	D	D1	n-d	D	D1	n-d
200	190			520		355				340	295	12-22	360	310	12-26
250	250			580		420				405	355	12-26	425	370	12-30
300	270			710		490				460	410	12-26	485	430	16-30
350	290			770		560				520	470	16-26	555	490	16-33
400	406			830		625				580	525	16-30	620	550	16-36
450	432			870		685				640	585	20-30	670	600	20-36
500	457			930		720				715	650	20-33	730	660	20-36
600	508			1090		910				840	770	20-36	845	770	20-39
700	610	300	240	1260	520	1050	760	650	4-30	910	840	24-36	960	875	24-42
800	660	360	220	1440	600	1170	820	720	4-30	1025	950	24-39	1085	990	24-48
900	711	420	300	1535	650	1315	950	820	4-30	1125	1050	28-39	1185	1090	28-48
1000	811	460	350	1750	700	1460	1040	900	4-36	1255	1170	28-42	1320	1210	28-55
1200	850	500	410	1960	800	1580	1240	1070	4-36	1485	1390	32-48	1530	1420	32-55
1400	950	620	500	2250	900	1900	1400	1250	4-36	1685	1590	36-48	1755	1640	36-60
1600	1100	750	600	2500	1020	2100	1520	1300	4-36	1930	1820	40-55	1975	1860	40-60
1800	1200	850	680	2820	1150	2400	1620	1400	4-36	2130	2020	44-56	2195	2070	44-68
2000	1300	980	820	3150	1250	2750	1800	1550	4-48	2345	2230	48-60	2415	2280	48-68
