GIQ pneumatic high vacuum butterfly valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
GIQ series pneumatic high vacuum butterfly valves are suitable for high vacuum system to connect or cut off airflow.
GIQ series pneumatic high vacuum butterfly valves are powered by compressed air. The direction of the air passage is changed by electromagnetic directional valve, and the cylinder is pushed. The valve plate fixed on the rotating shaft rotates 90 degrees to realize the opening and closing of the valve.
Type GIQ series pneumatic high vacuum butterfly valves are suitable for working air and non corrosive gases.
Main technical performance
適用范圍(Pa) | 105～1.3x10-5 |
閥門漏率(Pa.L/S) | ≤1.3x10-6 |
介質溫度（℃） | -25～+80(密封材料為丁腈橡膠) -30～+150(密封材料為氟橡膠) |
氣源壓力（MPa） | 0.4～0.6 |
法蘭標準 | JB919 |
安裝位置 | 任意 |
電源電壓 | 標準出廠：AC220V/50Hz 特殊指定：AC110V；DC24V；DC12V等 |
信號反饋 | 標準出廠：不帶反饋信號 特殊指定：磁性開關DV/AC5～240V |

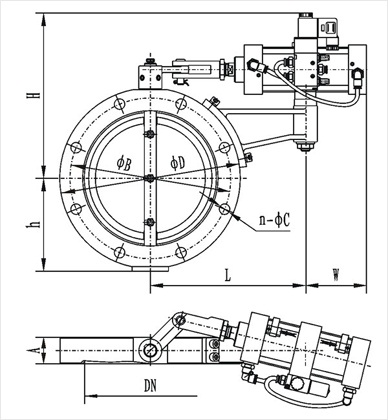

高真空蝶閥結構圖.jpg)
型號 | 通徑(DN) | ΦD | ΦB | H | A | L | W | n-ΦC |
GIQ-40 | 40 | 85 | 70 | 1148 | 22 | 160 | 62 | 4-Φ7 |
GIQ-50 | 50 | 110 | 90 | 161 | 4-Φ9 | |||
GIQ-63 | 63 | 130 | 110 | 171 | 26 | 180 | 81 | |
GIQ-80 | 80 | 145 | 125 | 178 | 30 | |||
GIQ-100 | 100 | 170 | 145 | 192 | 4-Φ12 | |||
GIQ-125 | 125 | 195 | 170 | 209 | 35 | 207 | 86 | |
GIQ-150 | 150 | 220 | 195 | 220 | 8-Φ12 | |||
GIQ-200 | 200 | 275 | 250 | 252 | 40 | 236 | 100 | |
GIQ-250 | 250 | 330 | 300 | 283 | 45 | |||
GIQ-300 | 300 | 380 | 350 | 329 | 55 | 280 | 118 | 8-Φ14 |
GIQ-400 | 400 | 500 | 465 | 389 | 60 | 303 | 136 | 8-Φ18 |
