CCQ-A pneumatic ultra high vacuum plug valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
CCQ-A series pneumatic ultra-high vacuum plug-in valve uses compressed air as power, changes the direction of air passage through electromagnetic directional valve, drives cylinder piston, drives valve plate to move up and down, realizes valve opening or closing, thus achieves the purpose of connecting or cutting off air flow in ultra-high vacuum system.
CCQ-A series pneumatic ultra-high vacuum plug-in valve is suitable for working medium of clean air and non-corrosive gas.
Main technical performance
適用范圍(Pa) | 105～1.3x10-7 |
閥門漏率(Pa.L/S) | DN≤200為≤1.3x10-7 DN≥250為≤6.7x10-7 |
閥門烘烤溫度（℃） | ≤150(除傳動裝置外) |
開閥時閥板兩側壓力差(Pa) | ≤2.7x103 |
氣源壓力（MPa） | 0.4～0.6 |
電源電壓 | 標準出廠：AC220V/50Hz 特殊指定：AC110V；DC24V；DC12V等 |
信號反饋 | 標準出廠：不帶反饋信號 特殊指定：微動開關DC/AC5～240V |

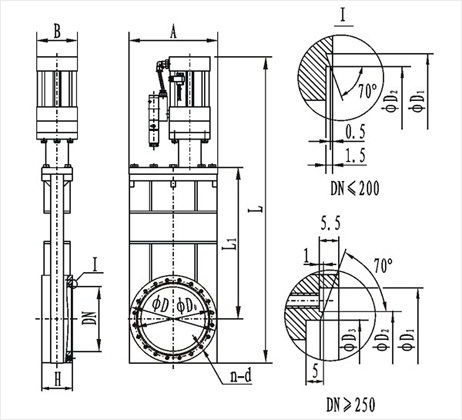

超高真空插板閥結構圖.jpg)
型號 | 通徑(DN) | ΦD | ΦD0 | ΦD1 | ΦD2 | ΦD3 | H | A | n-d | L | L1 | B | 法蘭標準 |
CCQ-50A | 50 | 89 | 72.4 | 61.6 | 55.6 | / | 60 | 91 | 8-M8 | 515 | 153 | 62 | GB/T6071 |
CCQ-63A | 63 | 114 | 92.1 | 82.6 | 76.6 | / | 65 | 105 | 8-M8 | 590 | 180 | 62 | |
CCQ-80A | 80 | 130 | 110 | 99 | 93 | / | 65 | 130 | 16-M8 | 608 | 220 | 75 | |
CCQ-100A | 100 | 152 | 130.2 | 120.7 | 114.7 | / | 70 | 152 | 16-M8 | 655 | 267 | 94 | |
CCQ-150A | 150 | 202 | 181 | 171.5 | 165.5 | / | 70 | 202 | 20-M8 | 707 | 350 | 94 | |
CCQ-200A | 200 | 254 | 231.8 | 222.3 | 216.6 | / | 80 | 251 | 24-M8 | 806 | 426 | 112 | |
CCQ-250A | 250 | 314 | 288 | 308 | 275 | 271 | 85 | 300 | 24-M10 | 1125 | 550 | 112 | JB5278 |
CCQ-300A | 300 | 365 | 338 | 353 | 323 | 318 | 90 | 352 | 32-M10 | 1195 | 613 | 140 | / |
