GDQ-J (b) electric and pneumatic high vacuum baffle valve
- sell：021-32051999
- sell：021-32050777
- fax：021-66099555
Details
- Product Introduction
- Service Promise
- Ordering Process
GDQ-J(b) series electric and pneumatic high vacuum flapper valves (also called angle valves) are sealed by bellows, with electrical signals as valve switching signals, and with compressed air as valve plate opening and closing power. When power is lost or compressed air is lost, the valve will automatically close the valve by means of a spring as the opening and closing mechanism in the high vacuum pipeline. It is one of the preferred valves for vacuum equipment automation because of its stable operation, reliable sealing and long service life.
GDQ-J (b) series electric and pneumatic high vacuum baffle valves are suitable for air and non corrosive gases.
Main technical performance
適用范圍(Pa) | 1x105～1.3x10-6 |
閥門漏率(Pa.L/S) | ≤1.3x10-7 |
適用溫度（℃） | -25～+40 |
氣源壓力（MPa） | 0.4～0.6 |
法蘭標準 | GB4982 |
安裝位置 | 任意 |
電源電壓 | 標準出廠：AC220V/50Hz 特殊指定：AC110V；DC24V；DC12V等 |
信號反饋 | 標準出廠：不帶反饋信號 特殊指定：微動開關 |

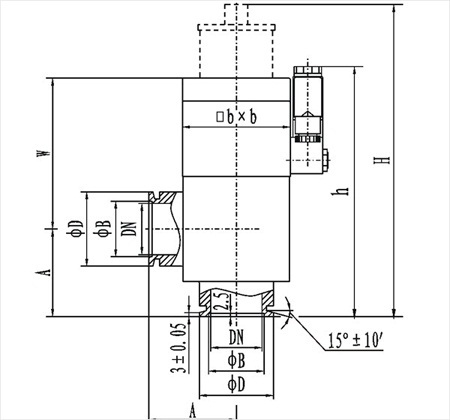

電、氣動高真空擋板閥結構圖.jpg)
型號 | 通徑(DN) | ΦD | ΦB | W | H | h | A | bxb |
GDQ-J10(b)/KF | 10 | 30 | 12.2 | 76 | 170 | 146 | 40 | 36x36 |
GDQ-J16(b)/KF | 16 | 30 | 17.2 | 76 | 170 | 146 | 40 | 36x36 |
GDQ-J25(b)/KF | 25 | 40 | 26.2 | 95 | 200 | 165 | 50 | 61x61 |
GDQ-J40(b)/KF | 40 | 55 | 41.2 | 112 | 232 | 186 | 65 | 80x80 |
